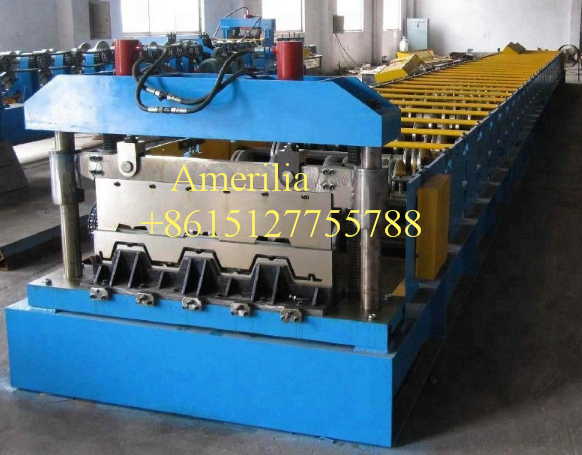

Floor panel production line

-
The floor panel is formed by rolling forming of galvanized steel sheet. It can be divided into open, closed and dovetail three types. In addition to being used as a formwork in rapid construction, it is also an integral part of steel high-rise buildings in the long-term use of concrete. Out floor panel production line is the professional roll forming machine to make floor panels. There are some details about the floor panel machine.

Profile drawing and finished products:


Features of floor panel:

a. light weight, high strength, bearing capacity, good earthquake resistance;
b. The construction is simple and quick, and the assembly is convenient;
c. Replace traditional templates and improve the shortcomings of traditional templates;
d, can be used as structural strength

Parameters of floor panel production line

No.
Item
parameter
1
Machine size
10000*1600*1500mm
2
Machine weight
10500kg
3
Machine power
22kw
4
Hydraulic engine
5.5KW
5
Roll speed
15M/Min
6
Roll stations
28
7
Roller material
GCr15
8
Voltage
380V 60Hz 3PH/Customized
9
Material thickness
0.8-1.2mm/Customized
10
Control System
Schneider/Delta/Customized

Features of the floor panel production line

1.Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine controlled by PLC computer controlling system.
5.Elegant appearance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.

If you want to know more detail information about the machine, please feel free to contact with us at any time.
Email: machinesale01@zhongtuocn.com
