Antique glazed tile roll forming machine

-

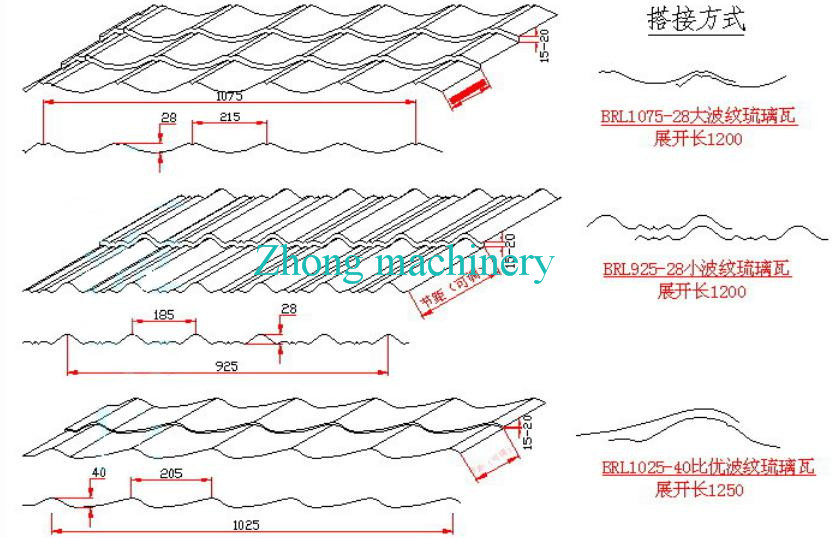

Antique metal tile roll forming machine is a kind of metal roofing sheet making machine. Based on the metal roofing sheet, our tech developing team takes some new design to make the glazed tiles antique, noble and beautiful. Here are some antique glazed tile drawing profiles for your reference:


All those drawing profile could be made our glazed tile machine. Here is one of glazed tile roll forming machine pictures for your reference:


Some main parameters of the glazed tile machine:

Feature: Ensure stability, precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Voltage: 380 V/50HZ 3Phase or as your required
Roller fixer: middle plate
Frame: 350 H steel welded
Drive mode: chain
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80mm
Number of rollers: 11 rollers
Main power: 5.5 KW

Mold of glazed tile machine:

The quality of the machine depends mostly by the mold. For the mold material we will give detail processing to make it work longer. Here are some pictures for your reference:
Here is the machine working video for your reference:
If you want to know more information about the Antique glazed tile roll forming machine, please feel free to contact with us.
Email: roofingmachine@zhongtuocn.com
Whatsapp: +8615127755788 and +8613733275488
