Metal floor sheet embossing machine

-
This steel bar angle making machine bar angle roll forming machine  can make the metal struct angle for the building structural.
The embossing line is used to produce the sheet with beautiful decorative pattern and figure and arabesquitic.
differnt shapes patern sheet can used as many decorative building, and used as floor sheet to be skidproof, especialy for the ship.
Zhongtuo metal  floor sheet emsbossing machine can help you emboss different pattens on the metal which could be used for many building, such as:  wall, panel or others.
The floor sheet embossing machine fuctions main by the two big rollers, there are patterens on the rollers, so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.
Floor sheet embossing machine can work manual by workers from the feeding and the embossing, and also be formed by the full automatic by PLC controling box.

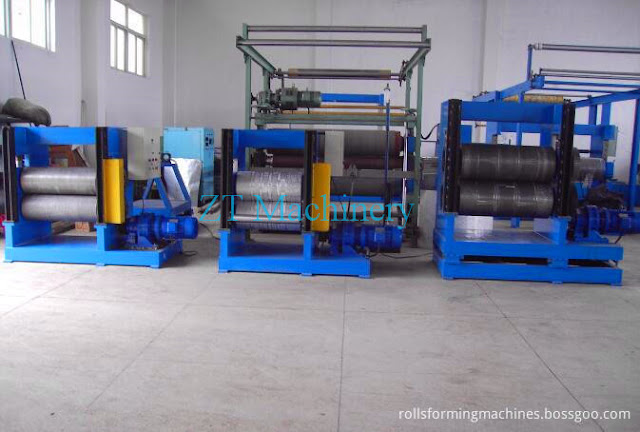

Below are some pictures of floor sheet embossing machine for your reference:
Below is some specifications details for the floor sheet embossing machine, please check it:
Embossing roller: ø440*1150;
Bearing: Torrington spherical roller bearings ,TWB 3003136 ;
Embossing thickness adjusted through the dial.
Bearing box: 400*400*160mm .
Driving: 11kw AC motor,
reducer:BWED53-17*11-11KW 4P
Speed : 1-10m/min
Pressure mode: hydraulic system, ø150 oil cylinder 2pcs
 Closed shields, safety devices. Emergency stop switch
Hardness of embossing roller surface: HRC 58~62
Depth of hardness surface:5-10mm
Material of embossing roller:60CrMnMo
Pattern laser engraving as customer`s sample;

If you need one set floor sheet embossing machine, we can design the machine and make the quotations and send to you.
But we need below details from you:
1  sheet material
2  embossing speed
3  sheet thickness
4  embossing patterns drawing

If you want to know more about the metal floor sheet embossing machine, kindly contact me by below details:

Email: roofingmachine@zhongtuocn.com
Whatsapp: +8613733275488
