Colored steel double layer roofing machine

-

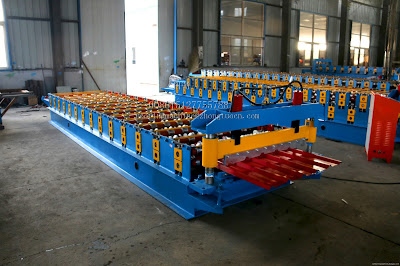

The raw material of our roofing machine is colored steel, sheets and coils are both workable, most customers choose  colored steel coils. double layer roofing machine includes of two layers, each layer can produce one panel, by this design, customer can save cost and space, if you are interesting in this machine, just send inquiry to me. My whats app:+ 86 137 3327 5488
here are detailed description for your reference:
taking the machine just delivered to Peru as example:

the drawing profiles of two layer are as following:

our machine is customized, welcome your drawing profile.
the following are some detailed parameters of each main part:

Materials:

Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness: 0.3- 0.8 mm (or as your request)
Coil width: max 1250mm or as your request
Forming speed: 8-12 m/min or as your requests

Production process of colored steel double layer roofing machine:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→
Auto cutting→Products receiving

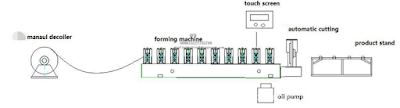

Components of colored steel double layer roofing machine:

Detailed introduction of every part for this  colored steel double layer roofing machinene:
1  Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system

2. Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

3. Main Roll Forming System
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.
Feature : Ensure stability , precision and lifetime.

Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.
some more pics for your reference:
